Rohde & Schwarz ZVM Vector Network Analyzer 10MHz to 20 GHz Benchtop/Portable Pre-Owned VNA

  • 1
  • 2
  • 3

Brand Name : Rohde and Schwarz

Model Number : ZVM

Place of Origin : Germany

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : in stock

Product name : Vector Network Analyzer

Frequency : 10MHz to 20 GHz

Type : Vector Network Analyzer (VNA)

Form Factor : Benchtop/Portable

Condition : Pre-Owned

Functions : Tested, in Full Working Conditions

Contact Now

Rohde & Schwarz VNA Network Analyzer ZVM 10MHz to 20 GHz Benchtop
Rohde And Schwarz ZVM Vector Network Analyzer 300 KHz Up To 24 GHz

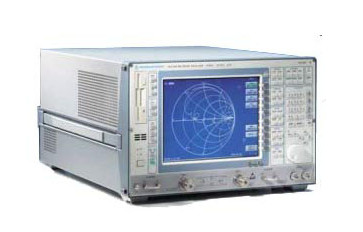

The Rohde ZVM is a 10 MHz to 20 GHz Vector Network Analyzer. Their outstanding performance in terms of speed, dynamic range and accuracy shows already in standard applications such as S-parameter or group delay measurements. This is enhanced by a wealth of measurement, display and logging functions. In addition, ZVM and ZVK can be used for complex measurement tasks, for example measurements on frequency-converting DUTs (conversion loss, intermodulation, spurious) and nonlinear measurements (intercept point and compression point).
Overview and Features of ZVM Vector Network Analyzer
  • Measurement bandwidth 10 Hz
  • Excellent dynamic range
  • >115 dB (ZVM)
  • >110 dB (ZVK)
  • Transfer time <15 ms (200 points)
  • Low inherent noise
  • <-110 dBm (measurement bandwidth 10 Hz)
  • High measurement speed
  • <0.5 ms/point (ZVM), <0.7 ms/point (ZVK)
  • Fast data transfer via IEC/IEEE bus
  • Internal PC with WindowsNT
  • Import of virtual networks using CAE-compatible file formats (*.S1P, *.S2P, *.S4P, *.flp)
  • Modern calibration techniques TOM,TRM,TRL,TNA,TOM-X
  • Embedding of virtual matching networks
  • Arbitrary configuration of generator and receiver
  • Selective receiver with fundamental mixing
  • Easy integration into PC environment and networks
  • Swept frequency-conversion and multitone measurements on amplifiers and mixers
  • Accurate calibration in test fixtures and on wafers
Rohde & Schwarz ZVM Vector Network Analyzer 10MHz to 20 GHz Benchtop/Portable Pre-Owned VNA
Available Options for ZVM
Option Code Description
B1 AutoCal Device DC-8GHz
B14 4 Port Adapter
B16 Ethernet interface for internal PC
B17 IEC/IEEE Bus Interface for internal PC
B18 REMOVABLE HARD DRIVE
B19 SPARE HARD DRIVE
B2 Time Domain
B21 Generator Step Attenuator PORT1
B22 GENERATOR STEP ATTENUATOR PORT 2
B23 STEP ATTENUATOR RECEIVER PORT 1
B24 STEP ATTENUATOR RECEIVER PORT 2
B4 Mixer Measurements
B5 Nonlinear Measurements
B7 Power Calibration Software
B8 3 Port Adapter. Ext device extending Port 1 to 2 Ports. 9 KHz- 4 GHz
K9 Virtual Embedding Networks
Z14 3.5mm (f) to 3.5mm (m) Cable, 50 ohms, 2
Frequently Asked Questions
1. Can you ship order to Canada or Australia?
Yes, we can. We send orders worldwide.
2. What delivery method do you use? and delivery time?
We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question?
You can contact us online or leave us messages below.
Rohde & Schwarz ZVM Vector Network Analyzer 10MHz to 20 GHz Benchtop/Portable Pre-Owned VNA
Rohde & Schwarz ZVM Vector Network Analyzer 10MHz to 20 GHz Benchtop/Portable Pre-Owned VNA
Rohde & Schwarz ZVM Vector Network Analyzer 10MHz to 20 GHz Benchtop/Portable Pre-Owned VNA
